5326 BE






Transport cases resistant to chemicals, humidity and dust. Resistant to harshest temperatures (-33°C / +90°C). Custom foams available on demand. Self oiling free running wheels.

Internal dimensions

LLength21 3/16 in
WWidth15 15/16 in
DDepth9 13/16 in
Lid2 3/8 in
Base7 1/2 in

External dimensions

LLength24 11/16 in
WWidth18 11/16 in
DDepth11 1/2 in

Other data

Empty weight22.04 lbs
Foam24.80 lbs
Weight with brings rifles0 lbs
Volume14 gal
Buoyancy82.01 lbs/max
Operating temperature°F min -27.4 / max +194

Internal dimensions

LLength538 mm
WWidth405 mm
DDepth250 mm
Lid60 mm
Base190 mm

External dimensions

LLength627 mm
WWidth475 mm
DDepth292 mm

Other data

Empty weight10 Kg
Foam11.25 Kg
Weight with brings rifles0 Kg
Volume53 lt
Buoyancy37.20 Kg/max
Operating temperature°C min -33 / max +90

CORROSION PROOF METAL HINGES WITH LID STAY FEATURES

FIXING POINTS (5325-5326)

Additional fixing points on the lid.

INTERNAL SLOTS

Internal slots for optional panel mounting brackets or panel mounting rings

JAM FREE LATCHES WITH EASY-OPENING MECHANISM

(from model 3818 on)

LID CAN BE SET TO SLIDE-OFF

By releasing the back screw, lid becomes set to slide-off when opened at 70°

MANUAL PRESSURE RELEASE VALVE

The internal stop ring prevents valve from being completely extracted (Art. PURGEVALVE.B)

PVC WATERPROOF I. D. REMOVABLE LABEL

(Art. LABELCOVER + nr. art.)

SEALING O-RING

(Art. NEOSEAL + nr. art.)

SELF-OILING FREE RUNNING WHEELS

SOFT GRIP RUBBER HANDLE

Load tested handle, reinforced with corrosion proof steel pins

STAINLESS STEEL REINFORCED PADLOCKABLE POINTS

4 stainless steel clip-covers on the two frontal outer padlock points, to grant a better resistance to abrasion.

TELESCOPIC HANDLE WITH QUICK AND SAFE LOCK-UNLOCK SYSTEM

TWO MAN LIFT SIDE HANDLES

BAG-V

PADDED BAG WITH ADJUSTABLE DIVIDERS

Highly durable padded bag with rubber coated handle and robust zipper with ...

EXPL COMBILOCK

PATENTED COMBINATION PADLOCK

Designed to fit snug to the Explorer case mould so as not ...

EXPL PADLOCK

PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS

Designed to fit snug to the Explorer case mould so as not ...

EXPL TSA.DIGILOCK

TSA APPROVED PADLOCK WITH COMBINATION

The new TSA approved padlocks allow tsa® airport security agents to open ...

FOAM.5325

FOAM SET FOR CASE 5325 AND 5326

Layers of pre cubed foam for the bottom and convoluted foam for ...

KIN.0481 - SILICA BOX

DESICCANT SILICA GEL BOX

KIT.EXPL.PLUGS

BLIND INSERT

Kit includes 6 pcs.
Whenever the slots are not going to be ...

KIT SUPP.EXPL.

METAL BRACKET

Kit includes 6 pcs.
All models (except for the 1908) are internally ...

KIT SUPP.PLAST.

PLASTIC BRACKET

Kit includes 6 pcs.
All models (except for the 1908) are internally ...

LIDFOAM.53

CONVOLUTED FOAM SET FOR CASE 5325 AND 5326

(includes 2 pcs.)


PANEXPL53

LID PANEL WITH ORGANIZED POUCHES

Practical and robust lid panel with pouches, ideal for small accessories and ...

KIN.0446

Easy-opening latch for models from 3818 up

Includes:
1 ...

Includes:
1 black latch
1 fixing pin

Read more

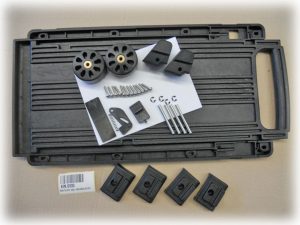

KIN.0930

Extractable handle + wheels for models 5325-5326

Includes:
1 ...

Includes:
1 black extractable handle
1 black protective cover
2 self-oiling wheels
1 metal spring
1 lock/unlock lever
1 small cover cap
4 fixing pins
2 supporting feet for wheels
4 supporting feet for the bottom
4 snap rings (Seeger)
12 fixing screws

Read more

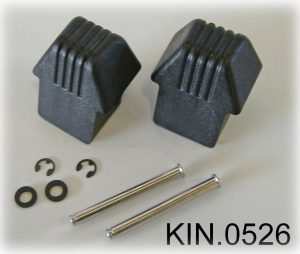

KIN.0526

Feet for models 5326 and 5823

Includes:
2 ...

Includes:
2 black feet
2 fixing pins
2 metal washers
2 snap rings (Seeger)

Read more
KIN.0495

Manual pressure release valve for models from 2712 up

Includes:
1 ...

Includes:
1 black purge valve (+ o-ring + pin)
1 threaded bush
1 snap ring (Seeger)

Read more
KIN.0496

Name tag holder for models from 2712 up

Includes:
1 ...

Includes:
1 transparent name tag holder

Read more
KIN.0925

Polyurethane o-ring seal for models 5325 and 5326

Includes:
1 ...

Includes:
1 o-ring

Read more
KIN.0542

Rubber coated handle for models 4820-5325-5326-5822-5823-5833

Includes:
1 ...

Includes:
1 black handle
2 fixing pins

Read more
KIN.0412

Side handle for models 5140 - 5325 - 5326 - 5822 - 5823 - 5833 - 7630 - 13513 - 13527 - 10840

Includes:
1 ...

Includes:
1 black handle
2 fixing pins

Read more

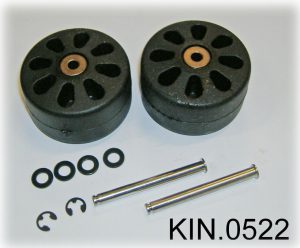

KIN.0522

Wheels for models 5823, 5833, 5326 and 7630

Includes:
2 self-oiling ...

Includes:
2 self-oiling wheels
4 metal washers
2 snap rings (Seeger)
2 fixing pins

Read more
