5326
IP67 waterproof and dust proof medium size photo cases with wheels and extractable handle for easy carrying photo accessories.

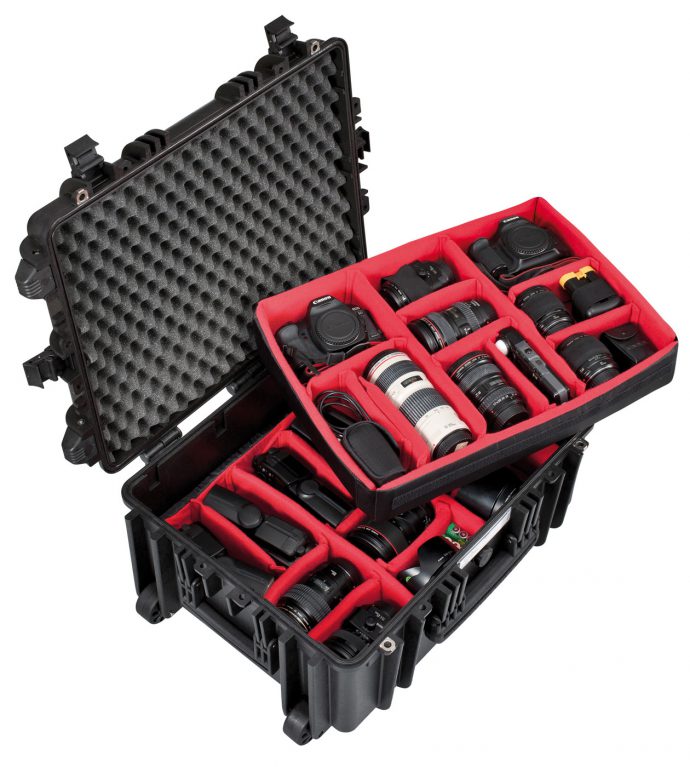

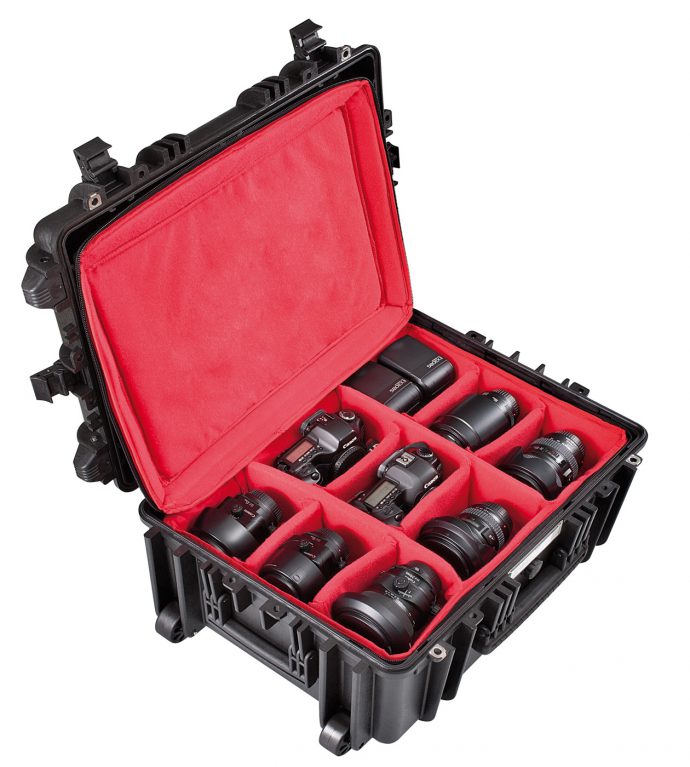

<p>Water resistant trolley cases for professionals. They come with two padded dividers and egg foam insert in the lid. The ideal solution for high-quality photo devices.</p>
Internal dimensions
L Length
21 3/16 in
W Width
15 15/16 in
D Depth
9 13/16 in
Lid
2 3/8 in
Base
7 1/2 in
External dimensions
L Length
24 11/16 in
W Width
18 11/16 in
D Depth
11 1/2 in
Other data
Weight empty
22.04 lbs
Weight with foam
24.80 lbs
Weight with custom foam
lbs
Volume
14 gal
Buoyancy
82.01 lbs/max
Operating temperature
°F min +194 / max -27.4
Internal dimensions
L Length
538 mm
W Width
405 mm
D Depth
250 mm
Lid
60 mm
Base
190 mm
External dimensions
L Length
627 mm
W Width
475 mm
D Depth
292 mm
Other data
Weight empty
10,00 Kg
Weight with foam
11,25 Kg
Weight with custom foam
Kg
Volume
53 lt
Buoyancy
37,20 Kg/max
Operating temperature
°C min +90 / max -33
SELF OILING FREE RUNNING WHEELS
CORROSION PROOF METAL HINGES WITH LID STAY FEATURES
INTERNAL SLOTS
Internal slots for optional panel mounting brackets or panel mounting rings
JAM FREE LATCHES WITH EASY-OPENING MECHANISM
(from model 3818 on)
SEALING O-RING
(Art. NEOSEAL + nr. art.)
MANUAL PRESSURE RELEASE VALVE
The internal stop ring prevents valve from being completely extracted (Art. PURGEVALVE.B)
PVC WATERPROOF I. D. REMOVABLE LABEL
(Art. LABELCOVER + nr. art.)
TELESCOPIC HANDLE WITH QUICK AND SAFE LOCK-UNLOCK SYSTEM
LID CAN BE SET TO SLIDE-OFF
By releasing the back screw, lid becomes set to slide-off when opened at 70°
SOFT GRIP RUBBER HANDLE
Load tested handle, reinforced with corrosion proof steel pins
TWO MAN LIFT SIDE HANDLES
STAINLESS STEEL REINFORCED PADLOCKABLE POINTS WITH CLIPS
4 stainless steel clip-covers on the two frontal outer padlock points, to grant a better resistance to abrasion.
FIXING POINTS (5325-5326)
Additional fixing points on the lid.
TOP ENVELOPE 15
PROTECTIVE SLEEVE FOR PC 15"-15.6"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
TOP ENVELOPE 13
PROTECTIVE SLEEVE FOR PC 13"-13.3"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
BPH53
PADDED BAG-BACKPACK FOR 5326
Padded bag that can be used as a practical backpack. Frontal pockets for tablets anf accessories. Internal adjustable dividers.
DRN53

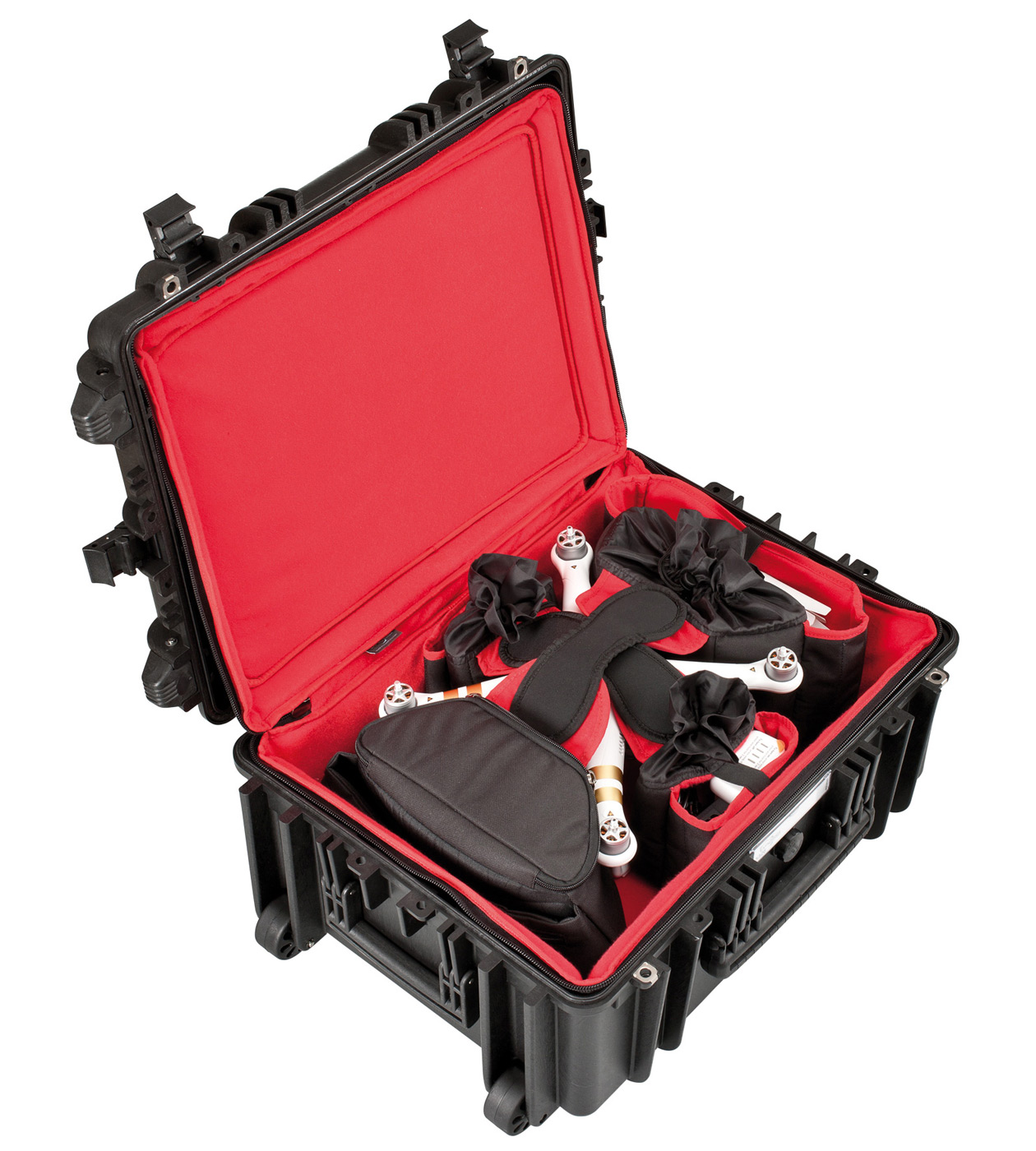

PADDED BAG-BACKPACK FOR DRONE FOR 5326
Drone padded bag that can be used as a practical backpack. Frontal pockets for tablets anf accessories.
COV53
TOP COVER FOR DIV53
Top covers available for larger models: they can be easily fixed on the dividers by Velcro strips. Ideal to protect and keep items in place.
DIV53
PADDED DIVIDER FOR 5325-5326
Padded dividers with internal adjustable partitions. Ideal to protect and transport any kind of sensitive equipment. Thanks to their modularity, they can be easily combined.
BAG-V
PADDED BAG WITH ADJUSTABLE DIVIDERS
Highly durable padded bag with rubber coated handle and waterproof zipper with lockable Velcro pull zipper. Practical external front pouch for documents, removable shoulder strap and rubber feet on the bottom to grant better grip.
Internal adjustable padded dividers for flexible configuration.
Ideal to protect sensitive equipment (ie electronic, photographic, broadcasting, medical etc.).
Suitable for cases 5325-5326.
Color: black/red.
PANEXPL53
LID PANEL WITH ORGANIZED POUCHES
Practical and robust lid panel with pouches, ideal for small accessories and documents.
Suitable for cases 5325 and 5326.
Color: black.
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
KIT.EXPL.PLUGS
BLIND INSERT
Kit includes 6 pcs.
Whenever the slots are not going to be used for in-built applications, those can be closed by blind inserts that will give the case a better and finished interior look.
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
KIT SUPP.EXPL.
METAL BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIT SUPP.PLAST.
PLASTIC BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
FOAM.5325
FOAM SET FOR CASE 5325 AND 5326
Layers of pre cubed foam for the bottom and convoluted foam for the lid.
The pre-cubed foam allows the user to tailor the insert to their own individual requirement.
The convoluted foam in the lid helps to firmly keep the stored equipment when the case is closed.
Available for models 5325 and 5326.
Color: dark grey.
DOWNLOAD PDF
KIN.1214
Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416
Includes:
4 metal reinforcements
KIN.0969
Transparent PC name tag for mod. 4209-4216-4412-4419-4820-5218-5221-5325-5326-5822-5823-5833-7626-7630-7635-7641-7726-7745-7814-9413-9433-10826-10840-11413-13513-13527-15416-MUB65
Includes:
1 transparent name tag holder
KIN.0412
Side handle for models 5325-5326-5822-5823-5833-7630-7814-13513-13527-15416
Includes:
1 black handle
2 fixing pins
KIN.0542
Rubber coated handle for models 4820-5325-5326-5822-5823-5833
Includes:
1 black handle
2 fixing pins
KIN.0496
Name tag holder for mod. 2712-2717-3317-3317W-3818-5117-5122-MUB78
Includes:
1 transparent name tag holder
KIN.0930
Extractable handle + wheels for models 5325-5326
Includes:
1 black extractable handle
1 black protective cover
2 self-oiling wheels
1 metal spring
1 lock/unlock lever
1 small cover cap
4 fixing pins
2 supporting feet for wheels
4 supporting feet for the bottom
4 snap rings (Seeger)
12 fixing screws
KIN.0522
Wheels for models 5326-5823-5833-7630-7641-7726-7745
Includes:
2 self-oiling wheels
4 metal washers
2 snap rings (Seeger)
2 fixing pins
KIN.0526
Feet for models 5326 and 5823
Includes:
2 black feet
2 fixing pins
2 metal washers
2 snap rings (Seeger)
