10826

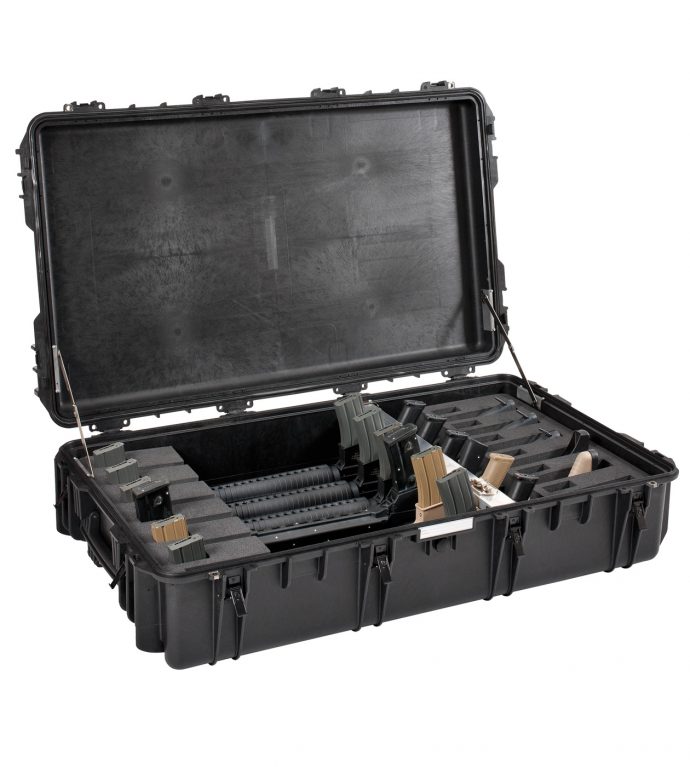

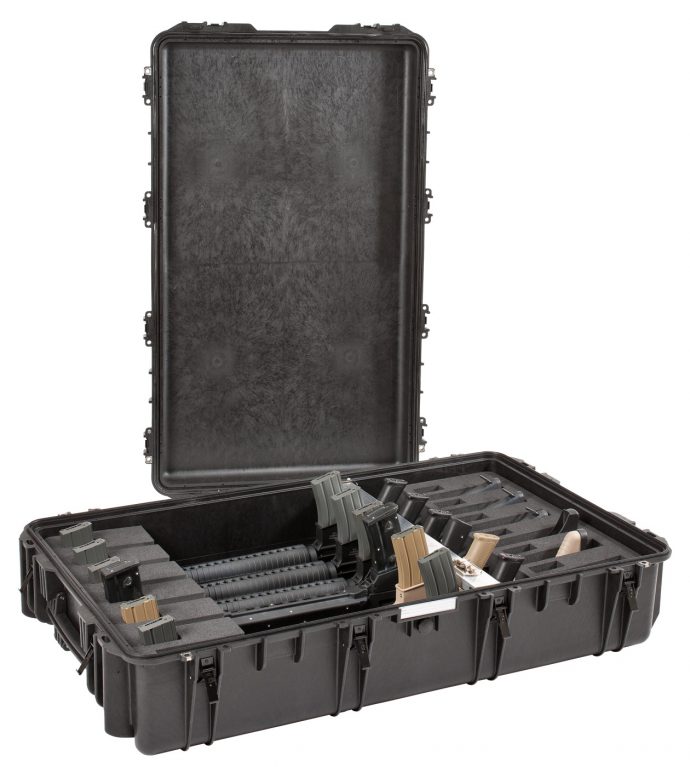

Multi-weapons transport cases. Metal butterfly latches (on certain models). Available in 5 standard internal configurations. Self oiling free running wheels. Combination latch (optional).
<p>Detachable lid</p>
Internal dimensions
L Length
42 1/2 in
W Width
24 7/16 in
D Depth
10 1/4 in
Lid
2 3/8 in
Base
7 7/8 in
External dimensions
L Length
46 3/8 in
W Width
28 1/4 in
D Depth
11 5/16 in
Other data
Weight empty
37.47 lbs
Weight with foam
44.97 lbs
Weight with custom foam
43.21 lbs
Volume
45.96 gal
Buoyancy
265.87 lbs/max
Operating temperature
°F min -27.4 / max +194
4 SELF-OILING FREE RUNNING WHEELS (model 10840)
LOCKABLE METAL BAR TO SECURE THE WEAPONS
SEALING O-RING
(Art. NEOSEAL + nr. art.)
MANUAL PRESSURE RELEASE VALVE
The internal stop ring prevents valve from being completely extracted (Art. PURGEVALVE.B)
PVC WATERPROOF I. D. REMOVABLE LABEL
(Art. LABELCOVER + nr. art.)
TWO MAN LIFT SIDE HANDLES
STAINLESS STEEL REINFORCED PADLOCKABLE POINTS
4 stainless steel clip-covers on the two frontal outer padlock points, to grant a better resistance to abrasion.
TOP ENVELOPE 15
PROTECTIVE SLEEVE FOR PC 15"-15.6"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
TOP ENVELOPE 13
PROTECTIVE SLEEVE FOR PC 13"-13.3"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
EX.METALPLATE
METAL BRACKET FOR WALL HANGING OF CASE 10840-10826
Metal bracket (Art. EX.METALPLATE 1 pc) to secure the whole case or the single shell to the wall in order to create a permanent or mobile armoury. Can also be used in special vehicles configurations or deployed in the field. The case (or both open shells separately) is hanged to the metal bracket by mean of its upper external handle, therefore easy to be applied and removed. The metal bracket has been studied to be fixed with a padlock to the case handle to avoid accidental releases or thefts (padlock not included).
KIT.DL
DIGITAL LOCK FOR CASES 9413, 9433, 11413, 13513, 13527, 15416, 10826 AND 10840
Kit includes 2 pcs.
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
PANDIV.10840
ALVEOLAR COVER PALLET WITH STRAPS FOR CASE 10840
Designed to hold the lid foam content steady in place.
The kit includes: 1 alveolar polypropylene sheet, 4 adjustable velcro straps, 8 metal loops and fixing hardware
KIN.1038
Metal lid support stay for mod. 10826 (hinged lid version only)
Includes:
1 lid support stay
4 screws
KIN.1037
Metal bar kit, 1 unit - for mod. 10826-10840
Includes:
1 metal bar
1 metal lock plate
1 bi-adhesive foam strip
10 screws
KIN.1214
Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416
Includes:
4 metal reinforcements
KIN.1371
Rubber coated handle for models 7626-7635-9433
Includes:
1 orange handle
2 fixing pins
KIN.1369
Rubber coated handle for models 7626-7635-9433
Includes:
1 military green handle
2 fixing pins
KIN.1367
Rubber coated handle for models 7626-7635-9433
Includes:
1 desert tan handle
2 fixing pins
KIN.1365
Rubber coated handle for models 7626-7635-9433
Includes:
1 black handle
2 fixing pins
KIN.1379
Handle for mod. 9413 (front handle) and mod. 10826-10840 (lateral short handle)
Includes:
1 desert tan handle
2 fixing pins
KIN.0969
Transparent PC name tag for mod. 4209-4216-4412-4419-4820-5218-5221-5325-5326-5822-5823-5833-7626-7630-7635-7641-7726-7745-7814-9413-9433-10826-10840-11413-13513-13527-15416-MUB65
Includes:
1 transparent name tag holder
KIN.0416
Handle (mod. 9413 front handle - mod. 10826-10840 lateral short handle)
Includes:
1 military green handle
2 fixing pins
KIN.0425
Handle for mod. 7630-7726-7745-11413-13513-13527-15416-10826-10840-MUB78
Includes:
1 black handle
2 fixing pins
KIN.0881
Handle for mod. 7630-7726-7745-11413-13513-13527-15416-10826-10840-MUB78
Includes:
1 sand handle
2 fixing pins
KIN.0417
Handle (mod. 9413 front handle - mod. 10826-10840 lateral short handle)
Includes:
1 black handle
2 fixing pins
KIN.0520
Wheels for mod. 10826-10840
Includes:
4 self-oiling wheels
2 snap rings (Seeger)
2 fixing pins
KIN.0434
Easy-opening latch for models from 3818 up
Includes:
1 orange latch
1 fixing pin
KIN.0424
Handle for models 7630-7726-7745-11413-13513-13527-10826-10840-15416-MUB78
Includes:
1 military green handle
2 fixing pins
KIN.0495
Manual pressure release valve for models from 2712 up (except mod. 3005)
Includes:
1 black purge valve (+ o-ring + pin)
1 threaded bush
1 snap ring (Seeger)
KIN.0947
Frontal metal butterfly latch for models 10826 and 10840 (long side)
Includes:
1 bottom support with integrated butterfly latch
1 lid support hook for butterfly latch
4 fixing pins
2 rivets
KIN.0423
Handle for models 7630-7726-7745-11413-13513-13527-10826-10840-15416-MUB78
Includes:
1 orange handle
2 fixing pins
