3815HL

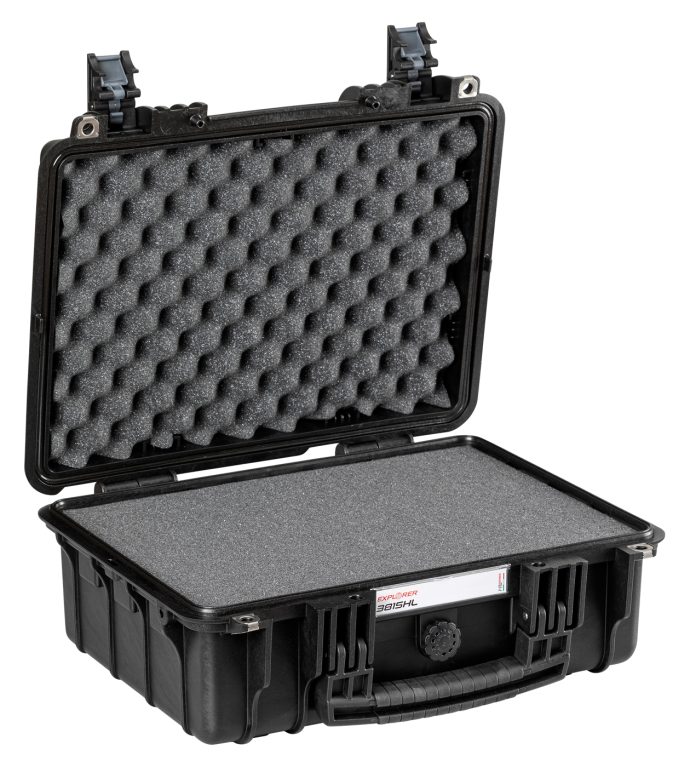

Medium size watertight case injected with proprietary copolymer PP that makes it more resistant and lightweight than other similar products. IP67 and MIL Stan certified* to be resistant to impact, liquids, shocks. Ideal container for documents, laptops, books, medical equipment and electronic devices, tools and more.
•Metal reinforced padlock holes
•Single block high performance injected O-ring
•Automatic pressure valve
•Soft rubber handle grip
•Removable lid
•Anti-tilt support
•Certified to grant constant performances between -33°C and +90 °C.

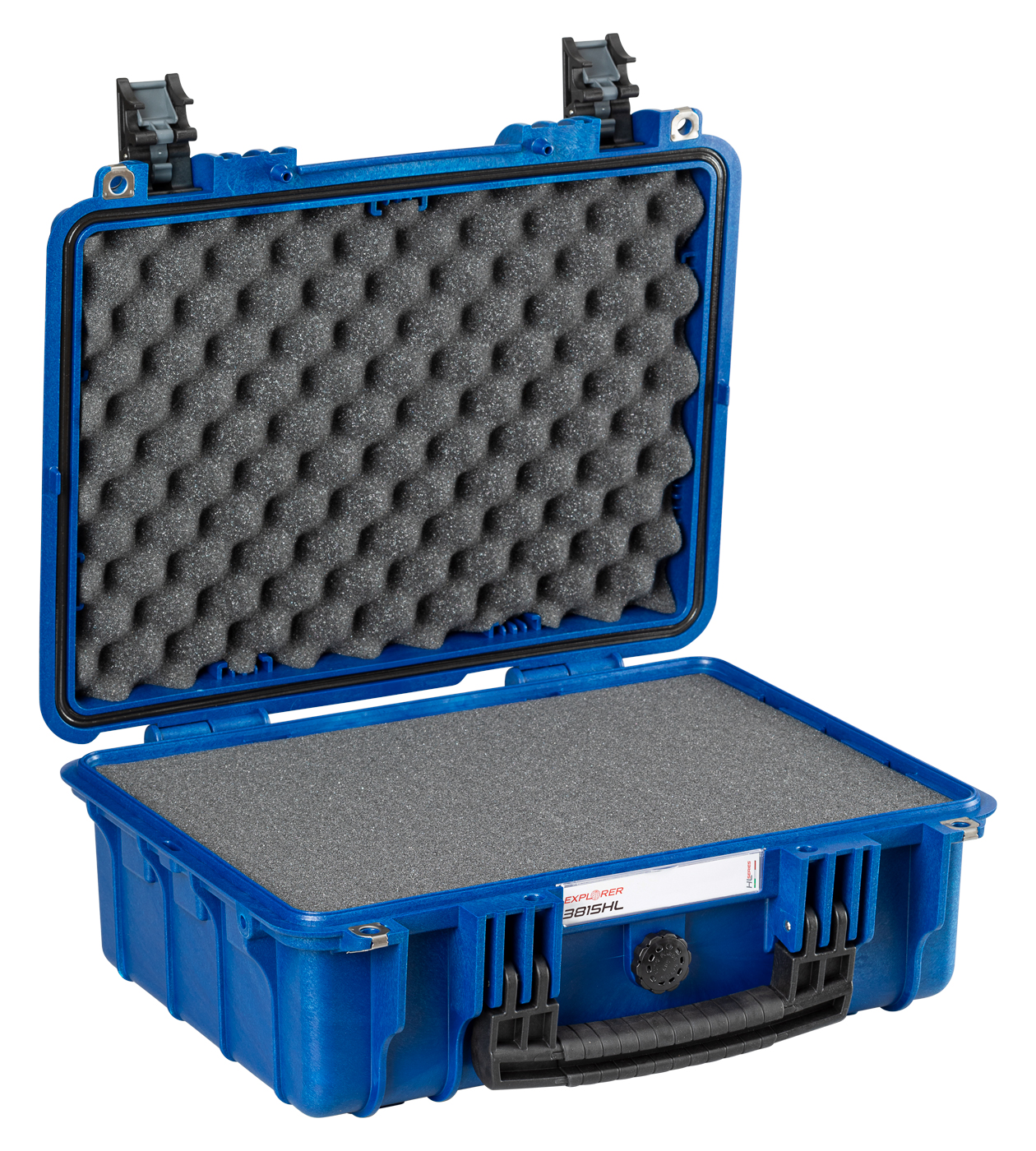

•Six standard colors available
*Pending certification release
Models
Internal dimensions
L Length
14 15/16 in
W Width
10 5/8 in
D Depth
6 1/8 in
Lid
1 7/8 in
Base
4 1/4 in
External dimensions
L Length
16 9/16 in
W Width
13 3/8 in
D Depth
6 15/16 in
Other data
Weight empty
4.85 lbs
Weight with foam
5.57 lbs
Weight with custom foam
lbs
Volume
4.20 gal
Buoyancy
22.04 lbs/max
Operating temperature
°F min -27.4 / max +194
AUTOMATIC VALVE
Automatic pressure release valve.
CORROSION PROOF METAL HINGES WITH LID STAY FEATURES
FIXING POINTS
Additional fixing points on the lid, available on certain models

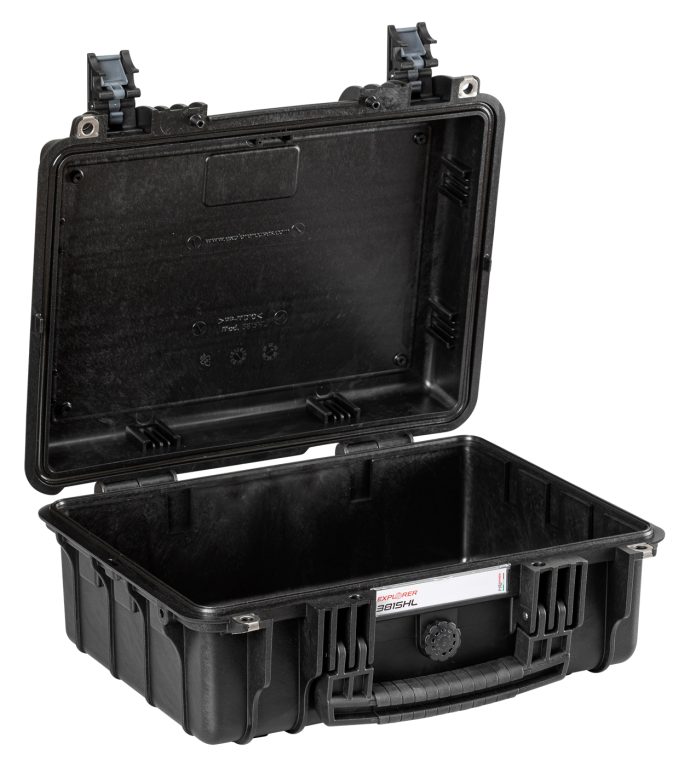

INTERNAL SLOTS
Internal slots for optional panel mounting brackets or panel mounting rings
JAM FREE LATCHES WITH EASY-OPENING MECHANISM
(from model 3818 on)
PVC WATERPROOF I. D. REMOVABLE LABEL
(Art. LABELCOVER + nr. art.)
SOFT GRIP RUBBER HANDLE
Load tested handle, reinforced with corrosion proof steel pins
COUNTERBALANCE SUPPORTS
(in certain models)
TOP ENVELOPE 13
PROTECTIVE SLEEVE FOR PC 13"-13.3"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
KIT.EXPL.PLUGS
BLIND INSERT
Kit includes 6 pcs.
Whenever the slots are not going to be used for in-built applications, those can be closed by blind inserts that will give the case a better and finished interior look.
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
KIT SUPP.EXPL.
METAL BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIT SUPP.PLAST.
PLASTIC BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
BACKPACK M
HANDY BACKPACK CARRYING SYSTEM FOR CASES
Made of robust tear resistant polyester. Designed with adjustable and comfortable padded shoulder straps and belt.
Provided with an external pocket for small accessories, with Velcro strap.
Ideal wherever a free hand movement is required, like in outdoor activities, extreme sports, emergency, rescue, trekking, industrial field, etc.
Suitable for models 3317, 3818 and 5117.
Color: black.
KIN.0479
Rubber coated handle for mod. 3818-4412-4419-5117-5122
Includes:
1 black handle
2 fixing pins
KIN.0469
Rubber coated handle for models 3818-4412-4419-5117-5122
Includes:
1 military green handle
2 fixing pins
KIN.0496
Name tag holder for mod. 2712-2717-3317-3317W-3818-5117-5122-MUB78
Includes:
1 transparent name tag holder
KIN.0446
Easy-opening latch for models from 3818 up
Includes:
1 black latch
1 fixing pin
KIN.0435
Easy-opening latch for models from 3818 up
Includes:
1 military green latch
1 fixing pin
KIN.0434
Easy-opening latch for models from 3818 up
Includes:
1 orange latch
1 fixing pin
KIN.0468
Rubber coated handle for models 3818-4412-4419-5117-5122
Includes:
1 orange handle
2 fixing pins
KIN.0883
Easy-opening latch for models from 3818 up
Includes:
1 sand latch
1 fixing pin
