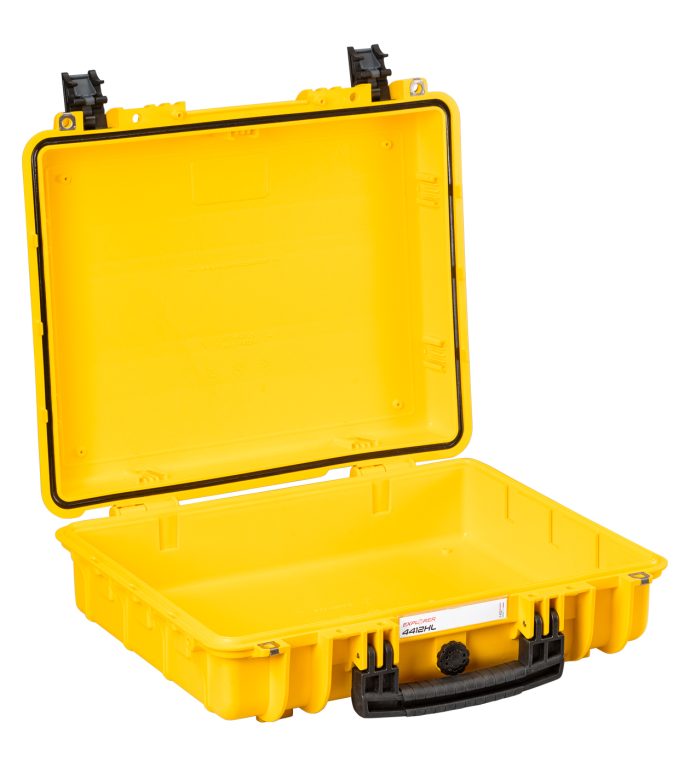

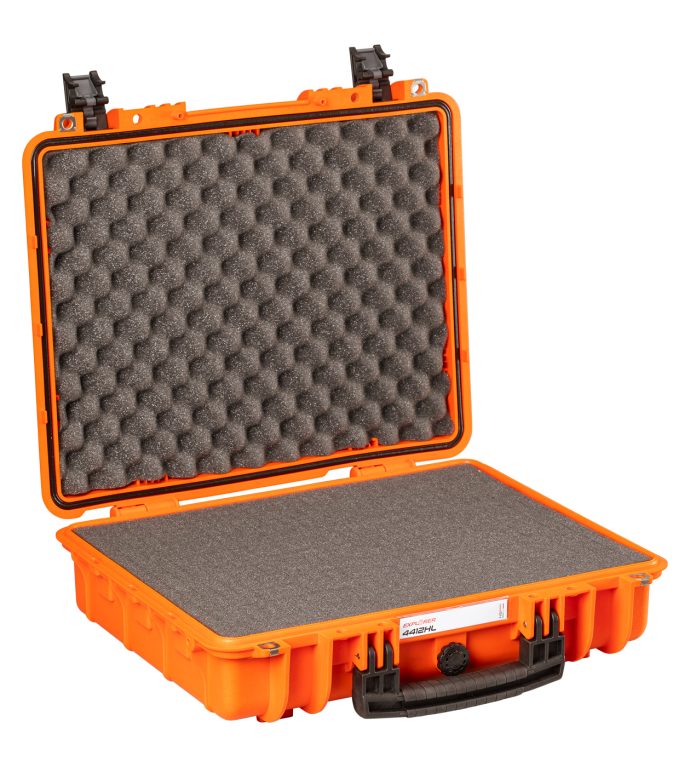

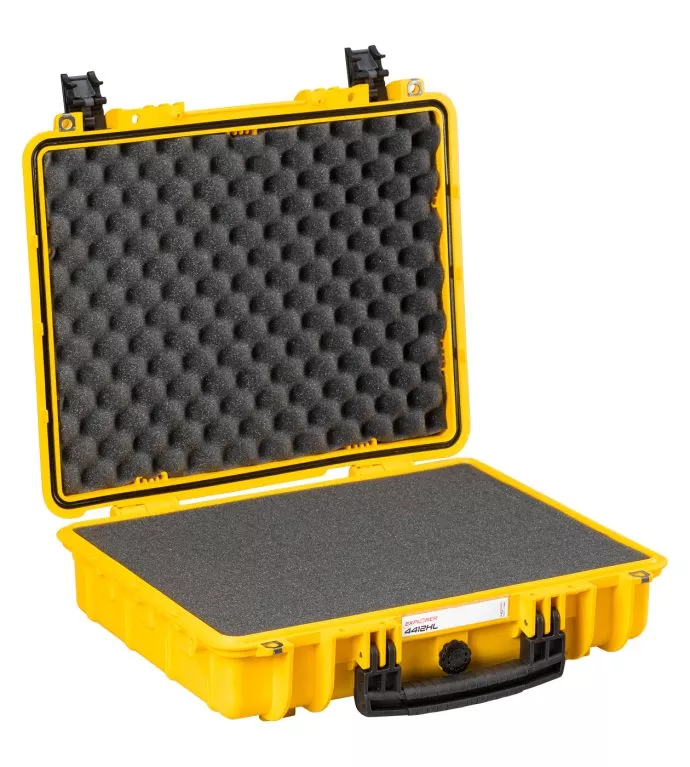

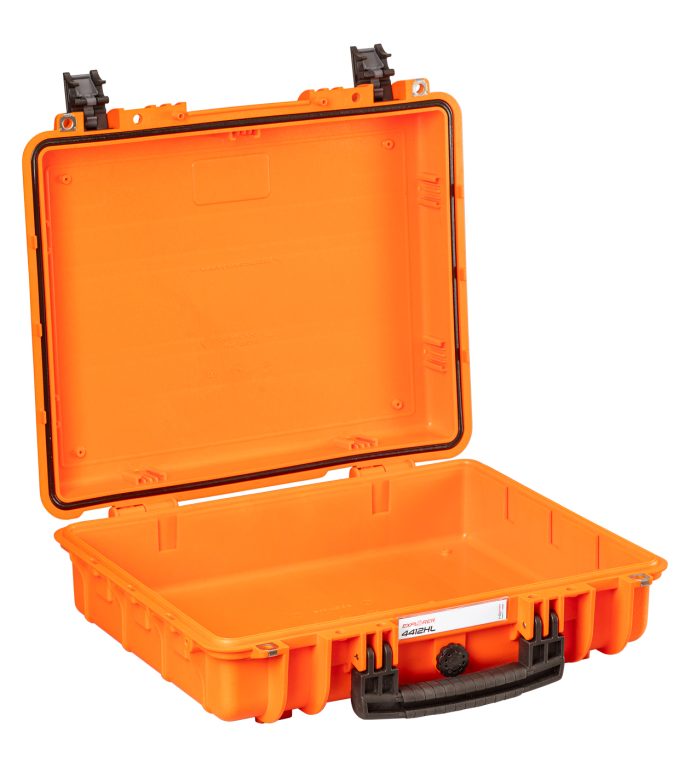

4412HL
Medium size watertight case, injected with proprietary copolymer PP that makes it more resistant and lightweight than other similar products. IP67 and MIL Stan certified to be resistant to impact, liquids, shocks. Ideal container for mechanical equipment, optical equipment and electronic devices, valuables, emergency kits and more. Can be used as a portable work station.
•Metal reinforced padlock holes
•Single block high performance injected O-ring
•Automatic pressure valve
•Soft rubber handle grip
•Removable lid
•Anti-tilt support
•Certified to grant constant performances between -33°C and +90 °C.
•Six standard colors available
Models
Internal dimensions
L Length
17 1/2 in
W Width
13 9/16 in
D Depth
4 15/16 in
Lid
1 7/8 in
Base
3 1/16 in
External dimensions
L Length
19 1/8 in
W Width
16 5/16 in
D Depth
5 7/8 in
Other data
Weight empty
5.51 lbs
Weight with foam
6.43 lbs
Weight with custom foam
7.09 lbs
Volume
5.07 gal
Buoyancy
23.80 lbs/max
Operating temperature
°F min -27.4 / max +194
AUTOMATIC VALVE
Automatic pressure release valve.
INTERNAL SLOTS
Internal slots for optional panel mounting brackets or panel mounting rings
JAM FREE LATCHES WITH EASY-OPENING MECHANISM
(from model 3818 on)
PVC WATERPROOF I. D. REMOVABLE LABEL
(Art. LABELCOVER + nr. art.)
LID CAN BE SET TO SLIDE-OFF
By releasing the back screw, lid becomes set to slide-off when opened at 70°
STAINLESS STEEL REINFORCED PADLOCKABLE POINTS
4 stainless steel clip-covers on the two frontal outer padlock points, to grant a better resistance to abrasion.
ABILITY TO STACK
The special design of the bottom and the lid feet, grants a perfect stackability.
TOP ENVELOPE 15
PROTECTIVE SLEEVE FOR PC 15"-15.6"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
TOP ENVELOPE 13
PROTECTIVE SLEEVE FOR PC 13"-13.3"
Protective padded notebook sleeve. Protects the laptop from shocks and scratches.
GBAG 44
PADDED GUN BAG FOR CASE 4412
Padded gunbag to protect SMG guns. Inclusive of a number of features to secure rifles and shotguns together with necessary accessories and ammunitions. GBAG 44 is designed to perfectly fit into Explorer Cases models 4412 (1 piece). The gunbag is built with durable, 600D tear resistant polyester and robust zipper with lockable Velcro pull zipper. Designed to protect and transport critical gear. This gun bag comes with a removable shoulder strap. Personal ID window on the backside and front removable hook-and-loop screen-printable band.
COV44
TOP COVER FOR DIV4412 AND DIV4419
Top covers available for larger models: they can be easily fixed on the dividers by Velcro strips. Ideal to protect and keep items in place.
DIV4412
PADDED DIVIDER FOR 4412
Padded dividers with internal adjustable partitions. Ideal to protect and transport any kind of sensitive equipment. Thanks to their modularity, they can be easily combined.
BAG-PC44
LAPTOP PADDED BAG
Highly durable padded bag with rubber coated handle and waterproof zipper with lockable Velcro pull zipper. Practical external front pouch for documents, removable shoulder strap and rubber feet on the bottom to grant better grip.
Provided with internal cable pouch.
Ideal for laptop up to 15".
Suitable for case 4412.
Color: black/red.
PANEXPL44
LID PANEL WITH ORGANIZED POUCHES
Practical and robust lid panel with pouches, ideal for small accessories and documents.
Suitable for cases 4412 and 4419.
Color: black.
SHOULDERKIT.U
ADJUSTABLE SHOULDER KIT
The kit is composed by: shoulder strap with plastic endings, 4 threaded knots, 2 metal plates.
(min. extension 106 cm, max. extension 201 cm). The strap comes with the Explorer logo.
Suitable for models: 1908, 1913, 2209, 2214, 3005, 4412, 4419, 5117, 9413, 11413 and 13513.
EXPL PADLOCK
PATENTED HEAVY DUTY BRASS PADLOCK WITH KEYS
Designed to fit snug to the Explorer case mould so as not to swing out
EXPL COMBILOCK
PATENTED COMBINATION PADLOCK
Designed to fit snug to the Explorer case mould so as not to swing out
BACKPACK L
HANDY BACKPACK CARRYING SYSTEM FOR CASES
Made of robust tear resistant polyester. Designed with adjustable and comfortable padded shoulder straps and belt.
Provided with an external pocket for small accessories, with Velcro strap.
Ideal wherever a free hand movement is required, like in outdoor activities, extreme sports, emergency, rescue, trekking, industrial field, etc.
Suitable for models 3317W, 4412, 4419 and 4820.
Color: black.
KIT.EXPL.PLUGS
BLIND INSERT
Kit includes 6 pcs.
Whenever the slots are not going to be used for in-built applications, those can be closed by blind inserts that will give the case a better and finished interior look.
EXPL TSA.DIGILOCK
TSA APPROVED PADLOCK WITH COMBINATION
The new TSA approved padlocks allow tsa® airport security agents to open the case withoutdestrying the lock. TSA agents are trained to recognize the travel sentry certified logo and should not break the case lock.
KIT SUPP.EXPL.
METAL BRACKET - KIT SUPP. EXPL
KIT SUPP. EXPL - Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
KIT SUPP.PLAST.
PLASTIC BRACKET
Kit includes 6 pcs.
All models (except for the 1908) are internally equipped with specific slots, to apply the optional metal or plastic brackets which provide either a panel’s fixing points or a fix mechanical joint inside the case, to build more complete applications. This way the case becomes a real workstation, rather than just a carrying container. As the panel mounting brackets are mechanically fixed by screws, they can be removed when necessary. The dedicated screws allow the case to remain waterproof, and help the panels to be removed easily and quickly
PANRING44
PANEL RING FOR CASE 4412 AND 4419
Includes Metric system fixing screws.
User friendly panel frames, they can be used to fix several kind of panels, from plastic to aluminum ones. Equipped with an additional gasket (which will be squeezed in between the panel and the frame) they can provide the case with a perfect instrumentation surface and a further humidity and dust resistance when the case is used in the field.
Completely removable, resistant and light, these panel rings help to transform the Explorer cases into practical workstations.
FOAM.4412
FOAM SET FOR CASE 4412
Layers of pre cubed foam for the bottom and convoluted foam for the lid.
The pre-cubed foam allows the user to tailor the insert to their own individual requirement.
The convoluted foam in the lid helps to firmly keep the stored equipment when the case is closed.
Available for 4412 model.
Color: dark grey.
DOWNLOAD PDF
PANRING44.USA
PANEL RING FOR CASE 4412 AND 4419
Includes Imperial system fixing screws.
User friendly panel frames, they can be used to fix several kind of panels, from plastic to aluminum ones. Equipped with an additional gasket (which will be squeezed in between the panel and the frame) they can provide the case with a perfect instrumentation surface and a further humidity and dust resistance when the case is used in the field.
Completely removable, resistant and light, these panel rings help to transform the Explorer cases into practical workstations.
KIN.1214
Metal clips for mod. 3005-4209-16-4412-19-4820-5140-5218-21-5325-26-5822-23-33-7626-30-35-41-7726-45-7814-9413-33-10826-40-11413-13513-27-15416
Includes:
4 metal reinforcements
KIN.0969
Transparent PC name tag for mod. 4209-4216-4412-4419-4820-5218-5221-5325-5326-5822-5823-5833-7626-7630-7635-7641-7726-7745-7814-9413-9433-10826-10840-11413-13513-13527-15416-MUB65
Includes:
1 transparent name tag holder
KIN.0479
Rubber coated handle for mod. 3818-4412-4419-5117-5122
Includes:
1 black handle
2 fixing pins
KIN.0469
Rubber coated handle for models 3818-4412-4419-5117-5122
Includes:
1 military green handle
2 fixing pins
KIN.0446
Easy-opening latch for models from 3818 up
Includes:
1 black latch
1 fixing pin
KIN.0435
Easy-opening latch for models from 3818 up
Includes:
1 military green latch
1 fixing pin
KIN.0434
Easy-opening latch for models from 3818 up
Includes:
1 orange latch
1 fixing pin
KIN.0468
Rubber coated handle for models 3818-4412-4419-5117-5122
Includes:
1 orange handle
2 fixing pins
KIN.0883
Easy-opening latch for models from 3818 up
Includes:
1 sand latch
1 fixing pin
